This is Cellulose Tape designed to suppress airborne particulate matter.
Features
- Uses a plastic core to eliminate paper dust dispersion into the air.
- Cellulose tape generates minimal static electricity, making it less prone to attracting dust and debris.
- Light duty packaging
- Ideal for general packaging, sealing plastic bags, and indicating purchase.
- Environmentally friendly
- Tape designed to help protect the global environment.
- Can be overlapped
- Tape can adhere to its own back surface.
- Easy to tear
- Tape can be cut by hand, offering excellent workability.
- Temporary adhesion
- Temporarily affixes bags, containers, and other items.
| Manufacturer | Nichiban | Company A | |
|---|---|---|---|
| Base material | Cellophane | OPP | |
| Core | PE core | Paper core | |
| Electrostatic charge level kV (kilovolt) | Electrostatic charge level during unwinding *1 | -0.2 | 31.5 |
| Electrostatic charge level immediately after unwinding *2 | 0.2 | 38.8 | |
| Paper attraction | None | High | |
- *1
Evaluated electrostatic charge while continuously unwound at a speed of 10 m/min.
- *2
Evaluated electrostatic charge of the tape immediately after unwinding at a speed of 30 m/min.
- *
Regardless of positive or negative (+/-), values closer to 0 indicate lower static electricity.
Applications
- General light duty packaging, temporary adhesion and affixing of notes, etc.
In Japan, Due to the increasing stringency and diversity of cleanroom standards in recent years, it is difficult to guarantee compliance with all cleanroom standards across the board for this product.
Whilst this falls outside the scope of our warranty, we would ask that you make your decision based on the actual operating environment when considering the use of this product.
General properties

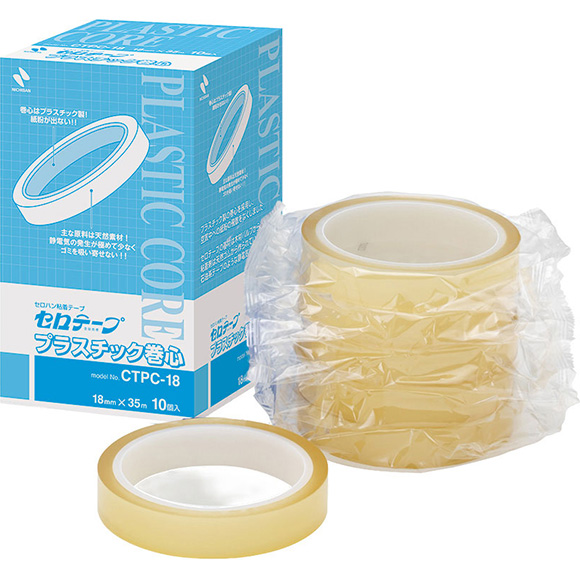

Item code：CTPC-18
| Product name | Cellulose Tape Plastic Core |
|---|---|
| Base material | Cellophane |
| Adhesive | Rubber adhesive |
| Thickness (mm) | 0.051 |
| Peel strength (N/10mm) | 4.59 |
| Tensile strength (N/10mm) | 46.6 |
| Elongation (%) | 25 |
-
Test conditions：23℃50％ＲＨ
- *
The above property values are average measured values and are not guaranteed values.
- *
Line-up
1. CTPC-18
| Item code | Recommended retail price | Size (mm x m) | JAN code | Remarks | Environmental information | |
|---|---|---|---|---|---|---|
| 1 | CTPC-18 | JPY 4,500 + TAX in Japan | 18×35 | 4987167103392 | 10 rolls per box Tape core : polyethylene Size of inner core : 76mm |
 |
| Quantity (pieces) | Individual packaging | Inner box | Outer carton case | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Individual packaging | Inner box | Outer carton case | Width (mm) | Depth (mm) | Height (mm) | Weight (g) | Width (mm) | Depth (mm) | Height (mm) | Weight (g) | Width (mm) | Depth (mm) | Height (mm) | Weight (kg) | |
| CTPC-18 | 1 | - | 20 | 106 | 106 | 190 | 650 | - | - | - | - | 448 | 565 | 210 | 13.8 |
